उत्पत्ति के प्लेस:
डोंगगुआन, चीन
ब्रांड नाम:
Fangsheng
प्रमाणन:
ISO9001:2015,IATF16949,RoHS,Reach,etc
मॉडल संख्या:
फ़ेस-टीएफटी
| Attribute | Value |
|---|---|

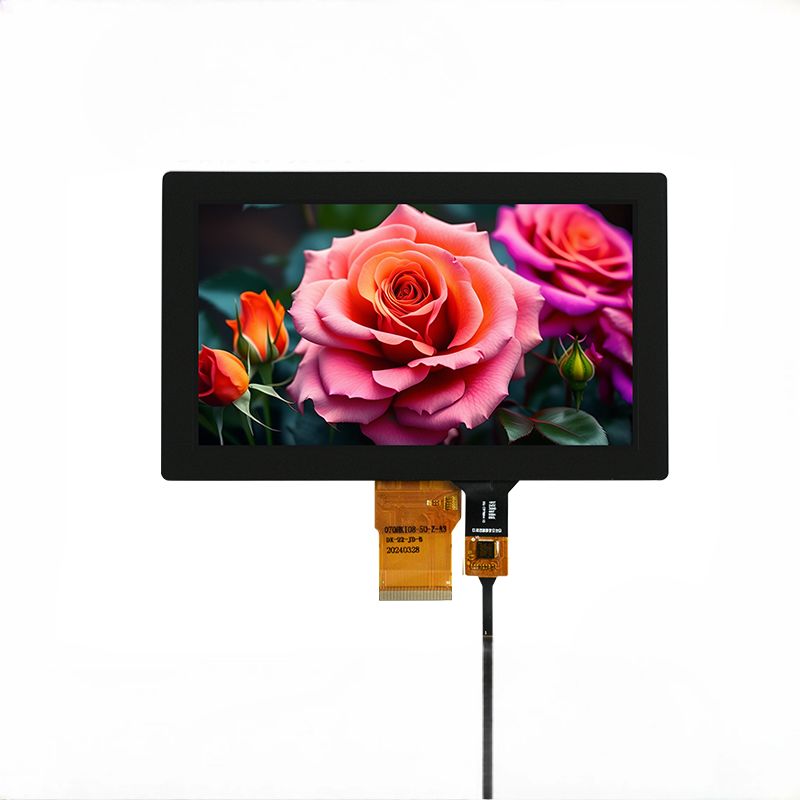

| Product Name | OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels |
| Brightness | 1000 nits |
| Interface | SPI/RGB/MIPI/LVDS, etc. |
| Features | Wide temperature range, high brightness, anti-interference, shock resistance, durable |
| Custom | PFC, CTP, Cover glass, etc. |
| Application | Factory automation control panels, CNC machine displays, etc. |
| Resolution | 800x480 (Custom) |
| Parameter | Specification |
|---|---|
| Resolution | 800 × 480 pixels |
| Interface | LVDS |
| Driver IC | RM533CO + RM577C1 |
| Viewing Angle | Free Viewing Angle (Free V.A) |
| Touch Support | Capacitive Touch Panel (CTP) |
| Operating Temp. | -30°C to +85°C (Wide Temperature Range) |
| Brightness | 1000 nits (High Brightness) |
| Dimensions | 165.40 × 104.59 × 7.73 mm |
| Active Area | 152.40 × 91.44 mm |
| Key Features | Capacitive Touch Display, Wide Temp TFT, High-Brightness TFT |
